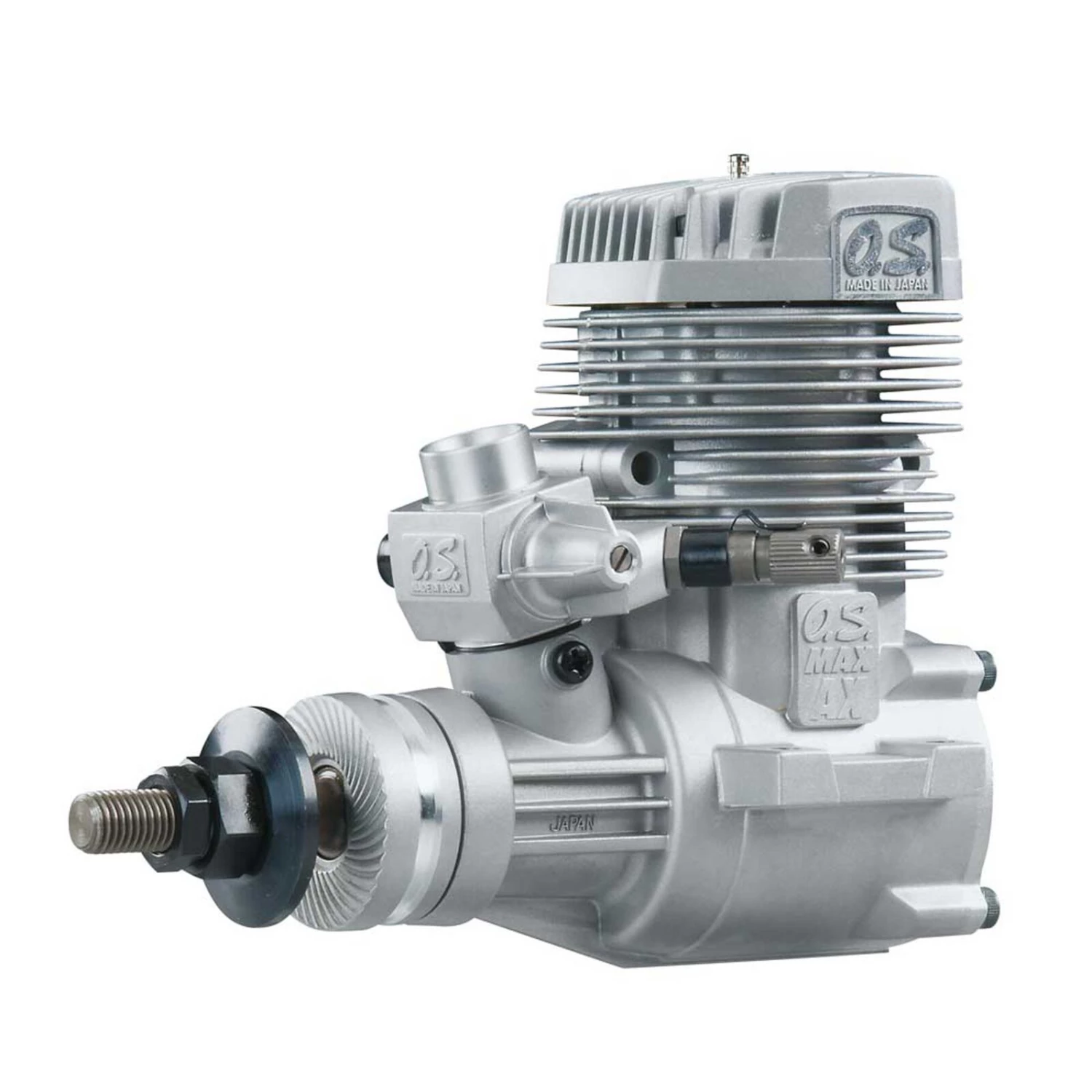

OS Engines 75AX ABL .75 Airplane Glow Engine with Muffler
Original price was: $343.93.$67.00Current price is: $67.00.
- Where quality meets convenience.
- Superior Quality Goods
- Shop with Zero Worries
- Safe Transactions, Always
Product Details
Key Features
- Same mounting dimensions as the O.S. Max .61FX
- Advanced Bi-Metallic Liner process uses a double layer of plating material rather than one thick layer. This helps the metal bond to the cylinder and makes the plating more durable. Also, the plating process is more consistent, resulting in a more precise fit between piston and sleeve for better compression and longer life.
- Power Box muffler design provides more volume for increased power in a very compact shape
- Angular head design offers increased surface area for better cooling
- Ball bearing-supported crankshaft
- 61A carburetor with diagonally placed needle valve eliminating remote needle valve placement
- Two year limited warranty
In The Box
- O.S. Max 75 AX ABL Aircraft Engine with E3010 muffler
- Carburetor
- #8 glow plug
- Product manual
Needed to Complete
- Aircraft blend fuel containing 5%-20% Nitromethane with at least 18% lubricant
Product Specifications
| Manufacturer # | 17400 |
| Product Height | 4.1″ (103.5mm) crankcase botton to top of cylinder head |
| Prop Range | 13×8-10 – 14×6-8 |
| RPM Range | 2,000 – 11,000 |
| Bore | 1.02″ (25.8mm) |
| Crankshaft Type | Threaded |
| Power Type | Glow |
| Displacement | 0.75 cu in (12.3cc) |
| Oil Type & Content | At least 16% synthetic lubricant |
| Cylinders | Single |
| Product Width | 2.4″ (61mm) at mounting tabs |
| Plug Type | O.S. #8 |
| Stroke | 0.93″ (23.5mm) |
| Product Length | 3.7″ (94.5mm) from back plate to front of drive hub |
| Engine (Only) Weight | 20.39 oz (578g) w/o muffler |
| Muffler Type | 2-piece aluminum |
| Crankshaft Threads | UNF5/16 – 24 |
| Muffler Weight | 6.28 oz (178 g) |
