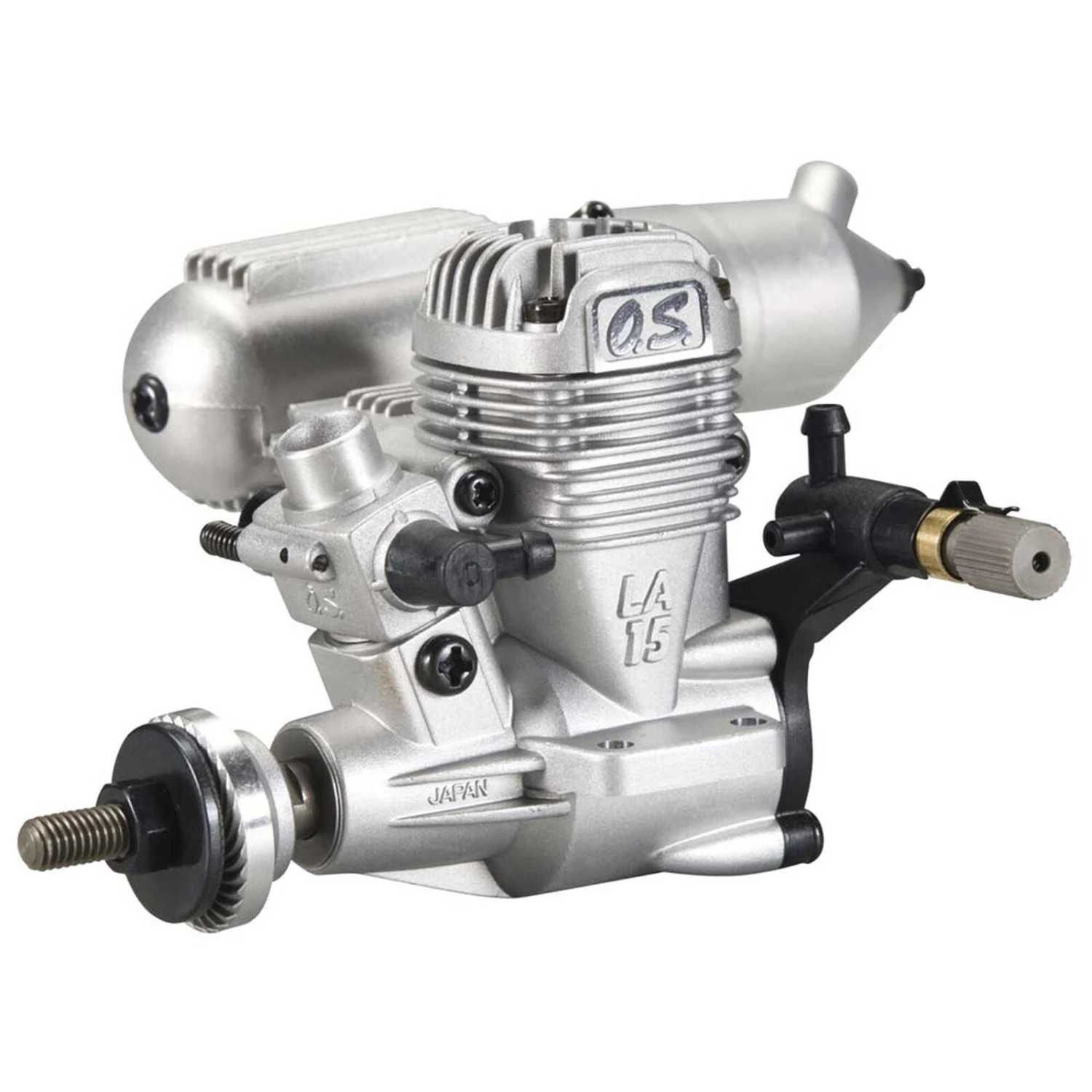

OS Engines 15LA ABN .15 Airplane Glow Engine with Muffler
Original price was: $131.99.$62.00Current price is: $62.00.
- Where quality meets convenience.
- Superior Quality Goods
- Shop with Zero Worries
- Safe Transactions, Always
Product Details
Key Features
- One-Piece natural finish crankcase
- Non-ringed cylinder construction
- Two Bronze Crankshaft Bushings (sometimes called oilite bearings)
- Schnuerle Porting (Schnuerle scavenging)
- Side Exhaust
- Nylon Backplate with Remote Needle Valve
- #10G carb with remote needle valve assembly
In The Box
- Expansion-Style Muffler #871
- .15LA Engine w/Carb
- Instructions, Decal Sheet, and Warranty Card
- Two 2.6x23mm screws to bolt muffler to engine
- 1.5 inch length of fuel tubing for remote needle valve
- One #A3 glow plug
Needed to Complete
- Glow Fuel with 5-15% Nitromethane and 20% (minimum) lubricant content Glow starter, plug wrench and field equipment
Product Specifications
| Manufacturer # | 11532 |
| Prop Range | 7×5-6 x 8×4-5 |
| RPM Range | 2,500 – 18,000 |
| Product Height | 2.4″ (61mm) crankcase botton to top of cylinder head |
| Cylinders | Single |
| Product Width | 1.6″ (40mm) at mounting tabs |
| Muffler Type | 2-piece aluminum |
| Engine (Only) Weight | 4.87oz (138g) w/o muffler |
| Crankshaft Threads | UNF1/4-28 M5 |
| Muffler Weight | 1.5oz (42g) |
| Bore | 0.598″ (15.2mm) |
| Product Length | 2.16″ (56.5mm) from back plate to front of drive washer |
| Benchmark Prop | 8×4 break-in |
| Displacement | 0.15 cu in (2.49 cc) |
| Oil Type & Content | At least 18% synthetic lubricant |
| Crankshaft Type | Threaded |
| Power Type | Glow |
| Plug Type | O.S. A3 |
| Stroke | 0.539″ (13.7mm) |
| Carb Type | Rotary |
