New

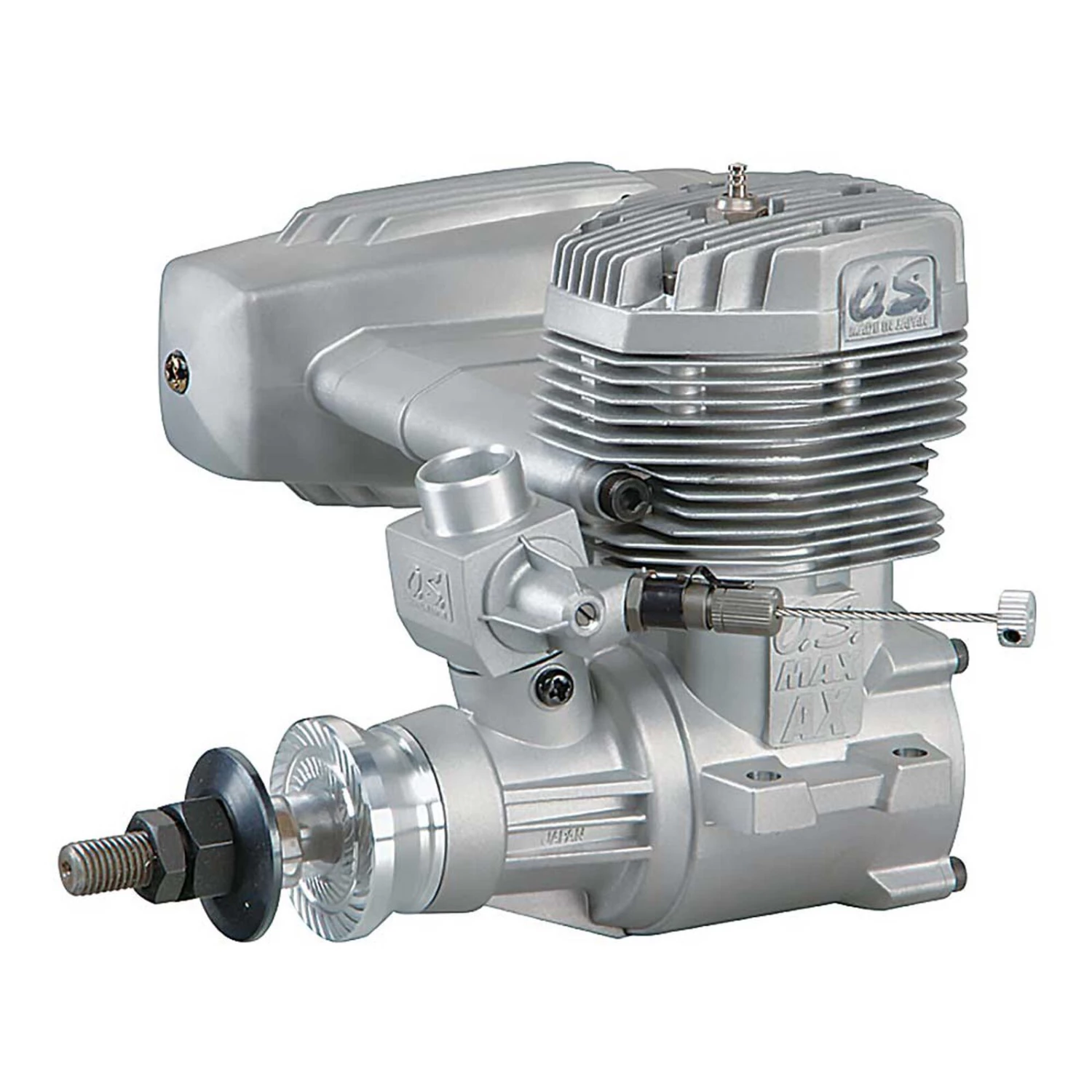

OS Engines 120AX Ringed 1.20 Airplane Glow Engine with Muffler
Original price was: $381.12.$61.00Current price is: $61.00.
- Where quality meets convenience.
- Superior Quality Goods
- Shop with Zero Worries
- Safe Transactions, Always
Product Details
Key Features
- Ideal for 3D, Precision and Sport flying
- Mounting Application: Mounts in same space as the .91FX (actual mounting dimensions vary slightly
- Internal Construction: Steel piston ring and liner, aluminum piston
- Muffler: E-5020 “Power Box” with extension and 90° adapters
- Carburetor: 70D with rearward angled needle valve for safety
- Glowplug: O.S. #8 supplied with engine, A5 (OSMG2693) will also work
- Warranty: Two-year limited
In The Box
- O.S. Max Two-Stroke 1.20AX Ringed Engine with E-5020 Power Box Muffler, #8 glow plug, muffler adapter, prop washer and lock nut, needle valve extension cable,instruction manual and decal sheet, two muffler screws, two muffler extension bolts, two long muffler bolts.
Needed to Complete
- Fuel: Two-Stroke with 18% lubricant and 5-20% nitromethane
- Propeller: 15×10-12 or 16×8-10
- Field Equipment: Glow starter, fuel filter, fuel pump, fuel tubing
Product Specifications
| Manufacturer # | 19210 |
| Product Height | 4.3″ (109.2mm) bottom of crankcase to top of cylinder head |
| Prop Range | 15 x 10-12 or 16×8-10 |
| RPM Range | 1,800 – 9,500 RPM |
| Carb Type | Rotary |
| Displacement | 1.218 cu in (19.96 cc) |
| Oil Type & Content | At least 18% synthetic lubricant |
| Product Length | 3.9″ (100.2mm) from back plate to front of drive hub |
| Bore | 1.197″ (30 mm) |
| Crankshaft Type | Threaded |
| Power Type | Glow |
| Plug Type | O.S. #8 |
| Stroke | 1.083″ (27.5mm) |
| Cylinders | Single |
| Product Width | 2.6″ (67mm) at mounting tabs |
| Engine (Only) Weight | 1.305lbs (592g) |
| Muffler Type | 2-piece aluminum |
| Crankshaft Threads | UNF5/16-24 |
| Muffler Weight | 7.07 oz (219.2 g) w/90 deg adapter installed, 7.9 oz (245 g) w/extension installed |
